ROUND BAR SANDER SKC10 |

●Enquiry |
Outer surface sanding of round bar
■Application: Handrail (round bar), Wood curtain rail, Rougher finish
| ■SPECIFICATIONS |
SKC10 |
| Workable size（diameter） |
φ30〜φ100mmφ |
| Min. workable length |
1200mm |
| Sanding speed |
3〜12m/sec |
| Feeding speed |
Max.2m/min |
| Sanding belt size(Width x Inner Length） |
80x2500mm |
| Work height |
850mm |
|
|
COMBINATION SANDERS 2M302S, 3M45S3, 3M15S3, 2M30H2 |
2M302S ●Enquiry |

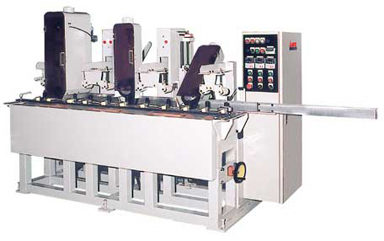

3M15S ●Enquiry
|
Sanding flat surface and round surface
Round surface sanding is available without making complicated shape
■Application: Wood panel for wall, flooring, steps and others

Cross section of work-pieces |
|
3M45S3
●Enquiry |
2M30H2 （Wheel head type）
●Enquiry
|
| ■SPECIFICATIONS |
2M30S2 |
3M45S3 |
3M15S3 |
| Max. workable size |
50mm |
70mm |
Workable feeding size
(Thickness x Width x Min. length ) |
100x300x600mm |
100x450x600mm |
150x150x600mm |
| Sanding Speed |
5〜17m/sec |
NO.1,NO.2=2〜15m/sec
NO.3=15m/sec |
| Feeding Speed |
8〜40m/min |
8〜28m/min |
| Sanding head adjustable angle |
0〜90° |
NO.1=+45〜-45°
NO.2=0〜90°, NO.3=Fixed |
Sanding belt size
(Width x Inner length） |
60x1300mm |
NO.1, NO.2=80x1300mm
NO.3=180x1600mm |
| Work height |
850mm |
850mm |
| ■SPECIFICATIONS |
2M30H2（Wheel head type） |
| Max. workable size |
150mm |
Workable feeding size
(Thickness x Width x Min. length) |
100x300x600mm |
| Feeding speed |
8〜40m/min |
| Wheel head adjustable angle |
0〜90° |
Non-woven roll size
(Width x Outer dia.） |
150xφ300mm |
| Work height |
850mm |
|
|
