Woodworking
  Lacquer sanding

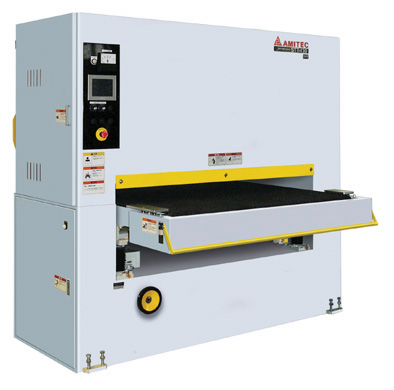

 STT Series Wide belt sander


STT130DV ●Enquiry


・Ideal suited for sanding lacquered panel.

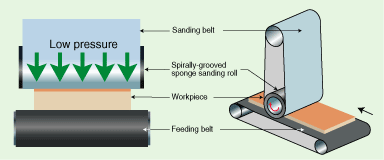

・Adopting a spirally-grooved sponge sanding roll, which assures the
  smoothand
 fine sanding performance, copying the surface of the workpiece, even it is
  warped or twisted.
・Table elevation type


Specifications
STT65DV
STT130DV
Max. workable size : (WxT)
650mmx150mm
1300mmx150mm
Min. workable length
210mm
280mm
Sanding speed
1.5-10m/sec.
(inverter control)
1.5-10m/sec.
(inverter control)
Feeding speed
6-25m/min. (variable)
6-25m/min. (variable)

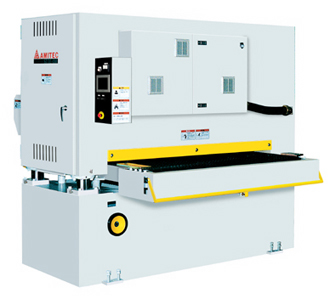

 STTE Series Wide belt sander

STTE130DV
 ●Enquiry

・Ideal suited for sanding lacquered panel.
・Adopting a spirally-grooved sponge sanding roll, which assures the
  smooth and fine
 sanding performance, copying the  surface of the workpiece, even it is
  warped or twisted.
・Table fixed type



Specifications
STTE65DV
STT130DV
Max. workable size : (WxT)
650mmx150mm
1300mmx150mm
Min. workable length
210mm
280mm
Sanding speed
1.5-10m/sec.
(inverter control)
1.5-10m/sec.
(inverter control)
Feeding speed
6-25m/min. (variable)
6-25m/min. (variable)
