| Griding/Polishing |
| Sheet coil grinding |

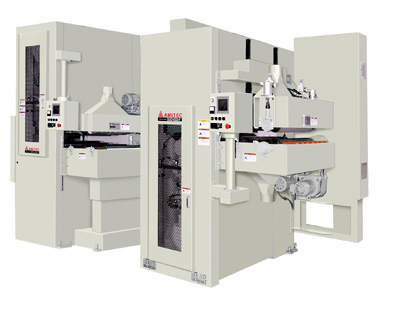

Coil Grinder (Dry system) SUD65+SRD65DF |
|
●Enquiry |

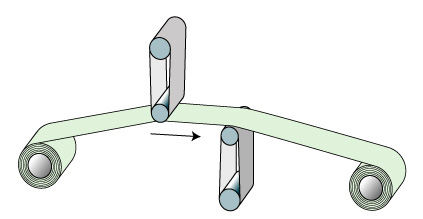

Combined image of coil grinder, un-coiler and re-coiler
| Specifications |
SUD65DF |
SRD65DF |
| Workable thickness |
0.45～1.2mm |
0.45～1.2mm |
| workable width |
480～620mm |
480～620mm |
| Grinding speed |
1200m/min |
1200m/min |
| Feeding speed |
4～9m/min |
Grinding belt size
(WxInner length) |
670x2615mm |
670x2615mm |
| Pass line height |
1350mm |
1350mm |
| Machine size (LxWxH) |
1890x2035x2485mm |
1890x2035x2485mm |
|

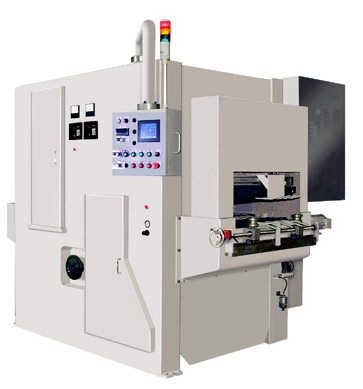

Coil Grinder (Wet System) SSW60S |

●Enquiry
|
| Specifications |
SSW60S |
| Workable thickness |
0.5～2.0mm |
| workable width |
300,400,500,600mm |
| Grinding speed |
300～1200m/min |
| Feeding speed |
3～12m/min |
Grinding belt size
(WxInner length) |
650x2100mm |
| Pass line height |
1100mm |
| Machine size (LxWxH) |
2660x2160x2409mm |
|

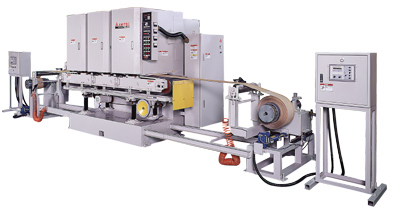

Coil Grinder (Dry system) TSS40DCC |
●Enquiry
|
| Specifications |
TSS40DCC |
| Max. workable width |
400mm |
| Max. table open |
150mm |
| Grinding speed |
No.1:1200m/min,No.2:1080m/min,
No.3:960m/min |
| Feeding speed |
7～25m/min |
Grinding belt size
(WxInner length) |
450x2000mm |
| Pass line height |
1030mm |
Machine size
(LxWxH) |
3375x1488x2220mm
(without un-coiler/re-coiler) |
|
|
