　Grinding
   Automotive components
   Abrasive Belt Grinder

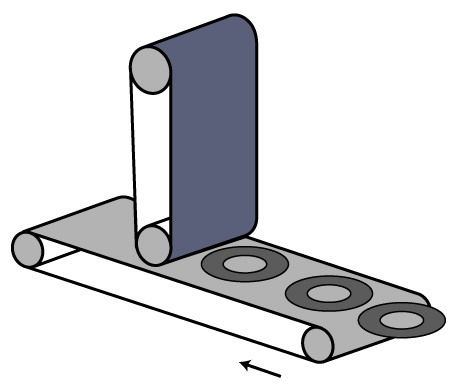

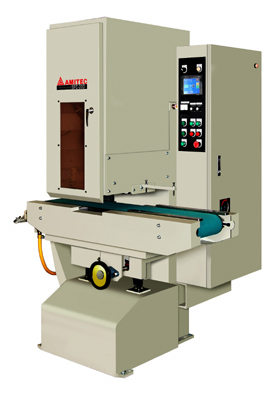

　Abrasive Belt Grinder (Small type belt grinder) SFC20D



Min. workable length (≧φ100mm)

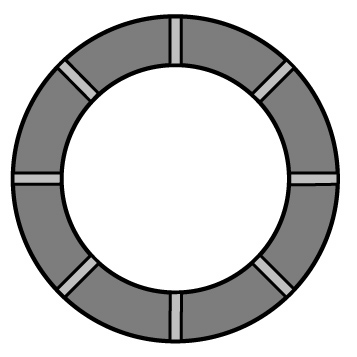

 Suitable for thickness control of clutch facing
Best fit for small components (φ100-φ200)
Both-side grinding line can be made with two SFC20Ds and
one turn-over device

●Enquiry

■Specifications
Max. workable size (WxTxL)　
100mm-180mm dia. x1.0mm〜10.0mm　
Feeding speed
4-10m/min.
Grinding speed
500〜700m/min.
Grinding direction
Up

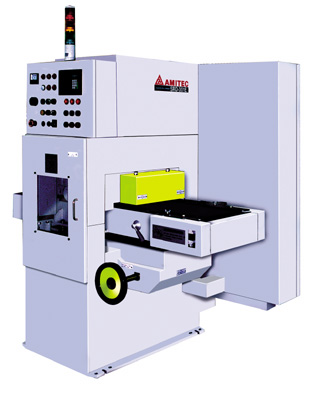

　Diamond Roll Grinder SRD301, SRD451

■Features
Extended tool life and stable grinding accuracy.
Easy diamond roll replacement. Disassemble driving unit is
not necessary.
With taper shank, grinding tool is easily released and changed.
Diamond roll is not suitable for metal grinding.

●Enquiry

■Specifications
Model SRD301
Max. workable size (W x T)
300mmx6mm
Min. workable length
160mm
Diamond roll rotating speed　
1200m/min.
Feeding speed
4.0〜10.5m/min.


　Wide Belt Sander (Dry system) SRK series

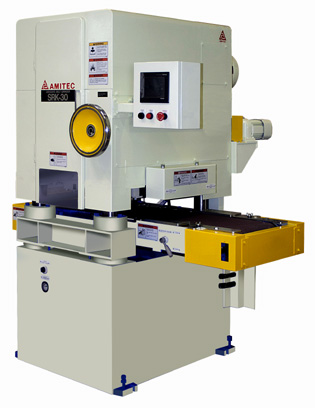

SRK30D Single head 		Ultimate machine for thickness control of clutch facing
Suitable for large clutch sizes: φ220〜φ650
Single head and twin heads machines are available for grinding
volume variation
Two units of SRK series machines and turn-over device in
the center make a production line for both sides grinding.

●Enquiry

Specifications (Single head）
SRK30D
 SRK45D
SRK65D
Max. workable size (WxT)　
300mmx150mm
 450mmx150mm
600mmx150mm
Min. workable length
160mm
 160mm
220mm
Grinding speed
1200m/min.
Feeding speed
50Hz:3〜11m/min
60Hz:3.6〜13m/min
5〜20m/min

Specifications (Twin heads)　
SRK30DD
SRK45DD
Max. workable size (WxT)
300mmx150mm　　　　
450x150mm
Min. workable length
160mm
Grinding speed
1200m/min.
Feeding speed
50Hz:3〜11m/min, 60Hz:3.6〜13m/min

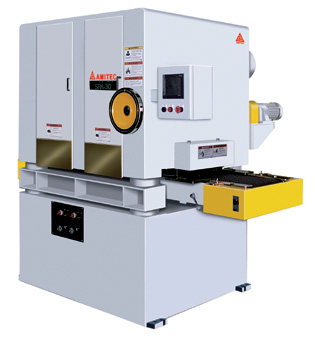

SRK30DD Tow head


　De-burring Sander (Dry system) SPW13

De-burring of front side and back side of small
components can be processed in a single pass

Suitable for fine burr removing on both side of ring shape components
Unique two-story structure. Upper unit removes burrs on front side, then
work-piece drops to turn over, and lower unit removes burrs on back side.
Work-piece is discharged from the exit just below the work-piece inlet, which saves total machine space

●Enquiry

Specifications
SPW13
SPW17
Workable size （T xφ）
1〜8xMax.120mm
1〜6xMax.160mm
Grinding speed
50Hz:145〜540m/min, 60Hz:172〜690m/min
Feeding belt speed
50Hz:2.5〜8.5m/min, 60Hz:3〜10m/min
Feeding speed
50Hz:5〜20m/min, 60Hz:7〜24m/min
