Cut
Cut various materials(Wood, Resin, Aluminum etc.) by using the round saw. Achives high precision, high rigidity and high speed. PC controlled software(Option) improved production efficiency and production control.
Length running saw PPKW120-290 (with chucking device)
Length running saw PPKW120-290 (with chucking device)

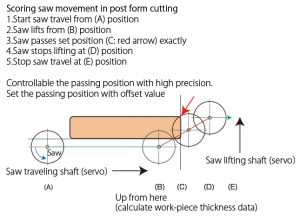

Suitable for post form cutting
Post form position is accurate because of AC servo control
Easy to set post form cutting position on operation panel.
■Use／
| ■Specification |
PPK120-290
|
|
|---|---|---|
| Max. workable size (t x L) |
1250x50mm
|
|
| Ruler travel stroke |
2850mm
|
|
| Main saw diameter, RPM |
φ355、4000rpm
|
|
| Scoring saw diameter, RPM |
φ355、4000rpm |
|
| Cutting speed |
Max. 20m/min variable speed
|
|
| Ruler travel speed |
Max. 20m/min
|
|
| Working table height
(including foundation plate) |
990mm
|
|
