Grind with grinding belt.We can suggest wet or dry types of machine according to your processing purpose.
Flex wheel grinder ( Dry type) DF502
Small de-burring Flex wheel grinder ( Dry type) DF502
Low price with excellent cost performance
Available to improve work efficiency of small de-burring.
Efficient removal of small burr on press punching and laser cutting parts.
■Feature

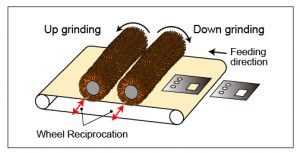

・Not just DOWN/UP grinding, tool oscillation system can remove burrs from multiple directions.
・Shortened maintenance time. Easy replace for flex wheel and feeding belt.
・Attached dust collector adsorbs the work-piece for stable feeding.
■Use／
| ■Specification | |
|---|---|
| Max. workable size |
500mm
|
| Max. opening (table lifting amout) |
95mm
|
| Grinding method |
1st head：DOWN grinding 2nd head：UP grinding
|
| Wheel RPM |
800～2400rpm
|
| Flex wheel size (Diameter x L) |
φ300x260mmx2(for 1 head）
|
| Feeding speed |
1～4m/min
|
| Feeding method |
Feed while adsorbing |
| Oscillation stroke |
10mm
|
| Oscillation times |
50～200 times/min
|
